Temperature Probes - Rotronic RMS T30-XXXX
特点
- PT100 1/3 DIN B
- No influence from the lead
- High measurement accuracy
The T30 temperature sensors are resistance thermometers (Pt100 = positive measurement resistance), meaning that the resistance increases with increasing temperature. The sensors are compatible with the RMS LOG-T30-L, RMS-LOG-T30-868 and RMS-LOG-T30-915 data loggers.
The data logger temperature range is limited to -40…70°C. The RMS temperature portfolio covers a wide range of applications, from the coldest such as liquid nitrogen tanks and cryogenic freezers, refrigerators and cold rooms to hotter ones such as water baths, incubators, ovens and autoclaves.
Please see below for the values of each probe. This list is not exhaustive and other probes, diameters and cable lengths are available on request.

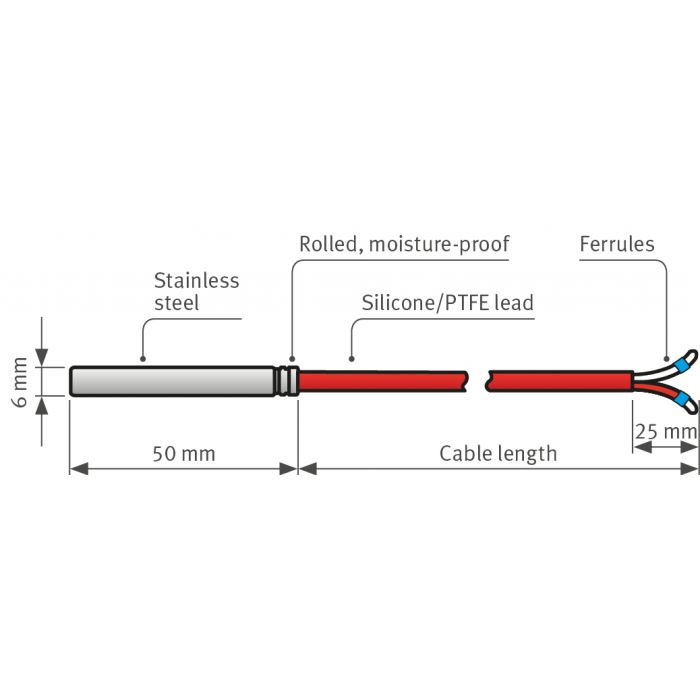

| T30-0001 | T30-0003 | T30-0006 | |
|---|---|---|---|
| Cable Material | PTFE | Silicone | Silicone |
| Sensor Measurement Range | -200...+600 °C | -200...+600 °C | -200...+600 °C |
| Cable Application Range | -190…260 °C | -50…200 °C | -50…200 °C |
| IP Protection | IP68 | IP65 | IP65 |
| Cable Length | 2000 | 4000 | 4000 |
| Cable Diameter (mm) | 4 | 6 | 6 |
| Probe Head Material | VA4 1.4571 | VA4 1.4571 | VA4 1.4571 |
| Probe length (mm) | 50 | 50 | 50 |
| Probe Diameter (mm) | 6 | 6 | 6 |
| Sensor | PT100 1/3 DIN Class B | PT100 1/3 DIN Class B | PT100 1/3 DIN Class B |
